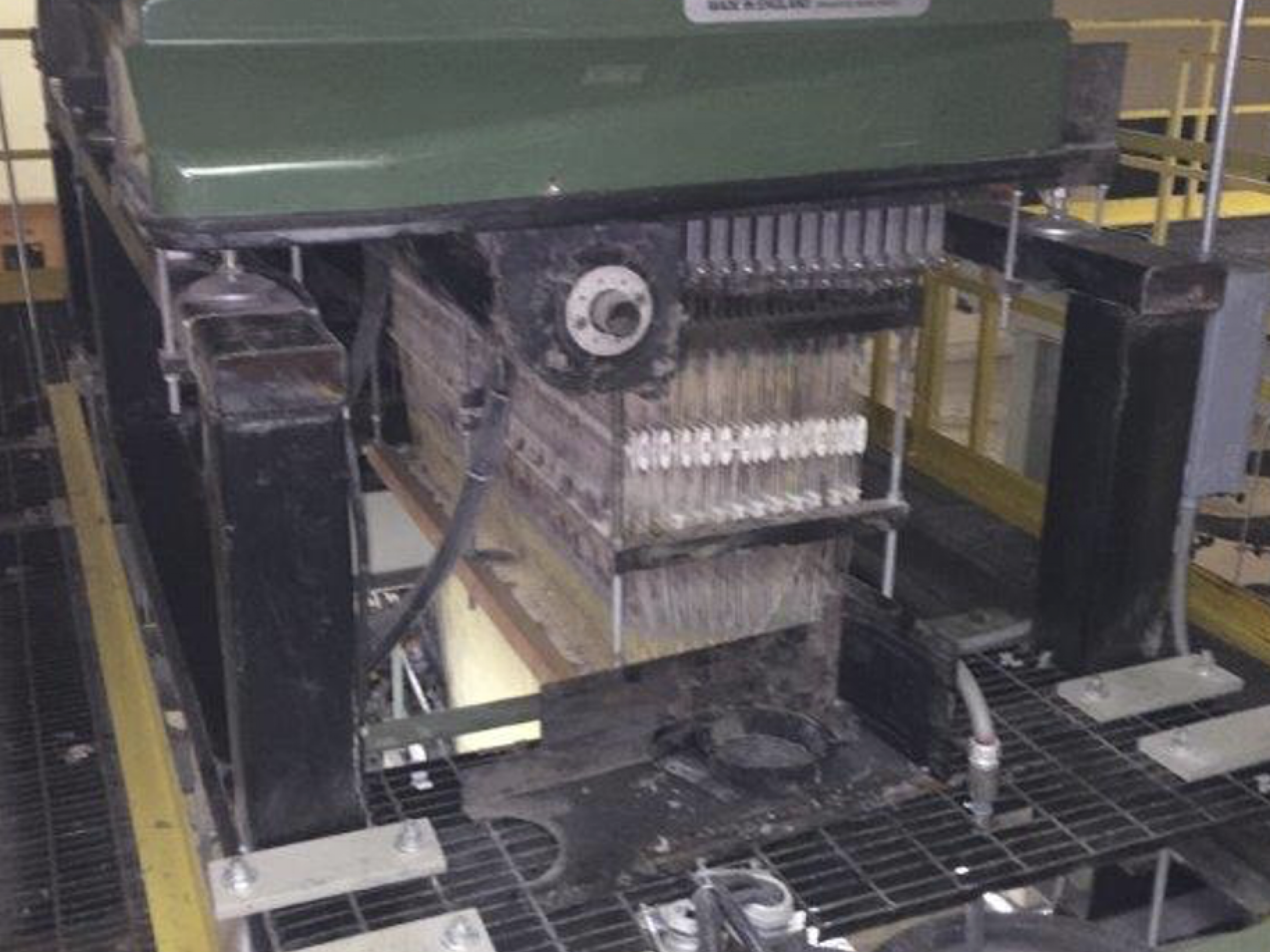

(11) Picanol Rapier GTX-8J Jacquard Weaving Looms

Manufacturer: Picanol
Model: GTX-8J

PROPOSAL – 14524



4 PICANOL RAPIER JACQUARD WEAVING LOOMS

Type GTX-8J

Year: 1998

Working width 1900 mm

with Bonas Electronic Jacquard,

Model IBJ

2688 Hook Format – 2650 Hooks Installed

With gantry mounting brackets and adjustable chairs

Model 250 controllers

8 Color Electronic Color Selector – Step Change Model

Leno Selvedges and Selvedge Cutters

Electronic Let off 1000mm beam capacity

Off Loom Take up (Batchers)

Each Loom

1 Van de Sandt Harness – 2650 Ends

1 Loom Beam 1000mm diameter

8 ROJ Quartz Weft Feeders

2 Weft Creel Stands

4 Warp Stop Bars

2650 Dropper pins

Serial numbers

235411 – Tag 49519

235410 – Tag 49520

235414 – Tag 49517

235409 – Tag 49516

(E0014524-01)



2 PICANOL RAPIER JACQUARD WEAVING LOOMS

Type GTX-8J

Year: 1996

Working width 1900 mm

with Bonas Electronic Jacquard,

Model IBJ

2688 Hook Format – 2650 Hooks Installed

With gantry mounting brackets and adjustable chairs

Model 250 controllers

8 Color Electronic Color Selector – Step Change Model

Leno Selvedges and Selvedge Cutters

Electronic Let off 1000mm beam capacity

Off Loom Take up (Batchers)

Each Loom

1 Van de Sandt Harness – 2650 Ends

1 Loom Beam 1000mm diameter

8 ROJ Quartz Weft Feeders

2 Weft Creel Stands

4 Warp Stop Bars

2650 Dropper pins

Serial numbers

229388 – Tag 49544

229389 – Tag 49543

(E014524-02)



2 PICANOL RAPIER JACQUARD WEAVING LOOMS

Type GTX-8J

Year: 1996

Working width 2800 mm

2 Bonas Electronic Jacquards - Coupled

Model IBJ

1x 2688 hook format + 1 x 1344 hook Format

Total 3072 hooks installed

With gantry mounting brackets and adjustable chairs

Model 250 controllers

8 Color Electronic Color Selector – Step Change Model

Leno Selvedges and Selvedge Cutters

Electronic Let off 800mm beam capacity

Split beam execution with differential and

2 beam gears

Off Loom Take up (Batchers)

Each Loom

1 Van de Sandt Harness – 3000 Ends

2 half Loom Beams 800mm diameter

8 ROJ Quartz Weft Feeders

2 Weft Creel Stands

4 Warp Stop Bars

3000 Dropper pins

Serial numbers

226945 – Tag 59881

226944 – Tag 59882

(E014524-03)



1 PICANOL RAPIER WEAVING LOOM

Type GTX

Year: 1997

Working width 2800 mm

with Staubli Dobby, Type 2612

8 Color Electronic Color Selector – Step Change Model

Leno Selvedges and Selvedge Cutters

Electronic Let off for 800mm beam capacity

Split beam execution with differential and

2 beam gears

Off Loom Take up (Batchers)

Each Loom

Without Loom beams

4 Harness Frames and connectors

8 ROJ Quartz Weft Feeders

2 Weft Creel Stands

4 Warp Stop Bars

4000 Dropper pins

Serial number

230440 – Tag 59883 (E014524-04)



2 PICANOL RAPIER JACQUARD WEAVING LOOMS

Type GTM-AS

Year: 1993

Working width 1900 mm

with Bonas Electronic Jacquard,

Model ASJ

2688 Hook Format – 2650 Hooks Installed

With gantry mounting brackets and adjustable chairs

Model 200 controllers

8 Color Electronic Color Selector – Step Change Model

Leno Selvedges and Selvedge Cutters

Electronic Let off 1000mm beam capacity

Off Loom Take up (Batchers)

Each Loom

1 Van de Sandt Harness – 2650 Ends

1 Loom Beam 1000mm diameter

8 ROJ Quartz Weft Feeders

2 Weft Creel Stands

4 Warp Stop Bars

2650 Dropper pins

Serial numbers

209918 – Tag 49551

209877 – Tag 49549

(E014524-05)

Contact for Pricing
