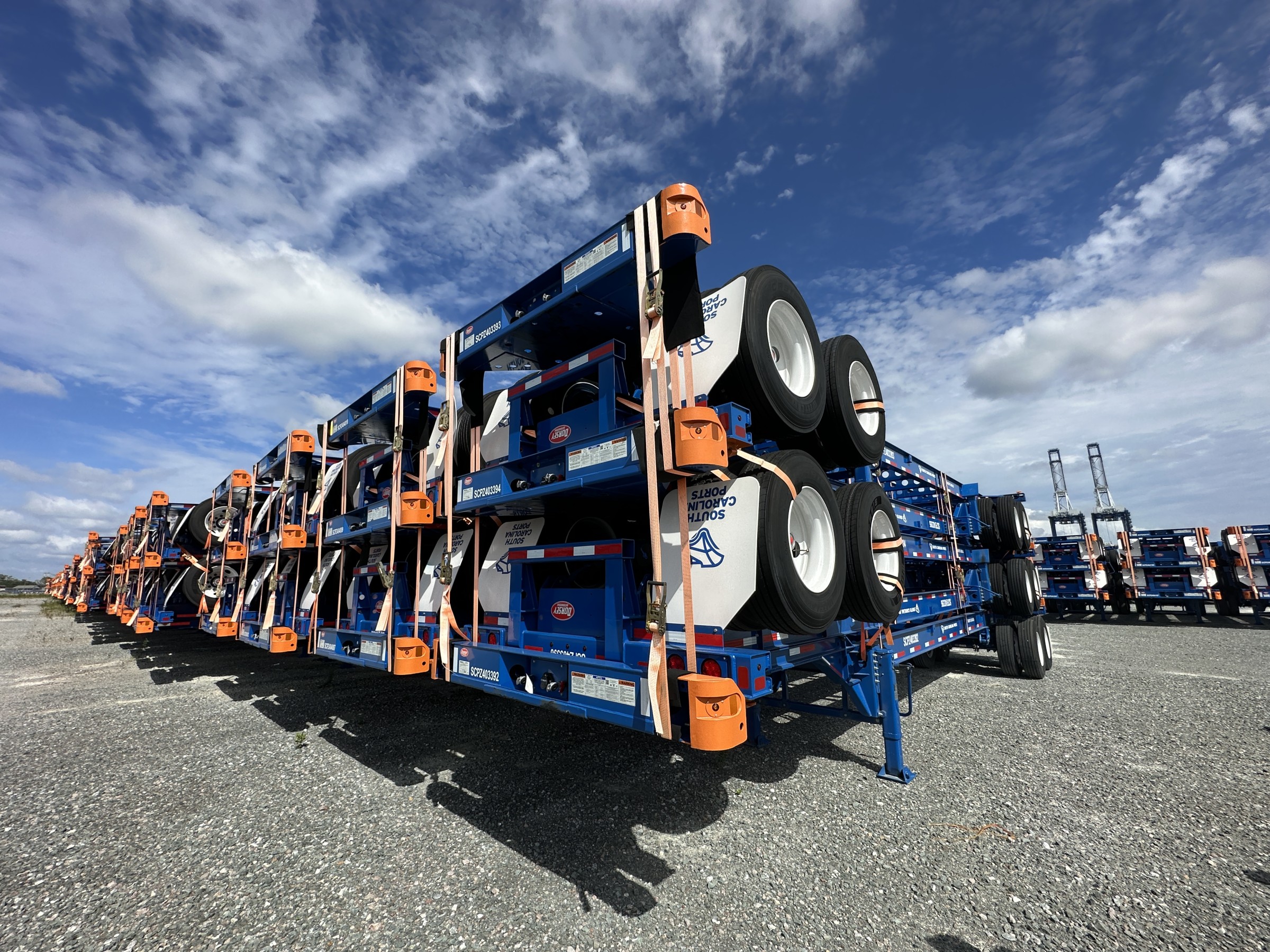

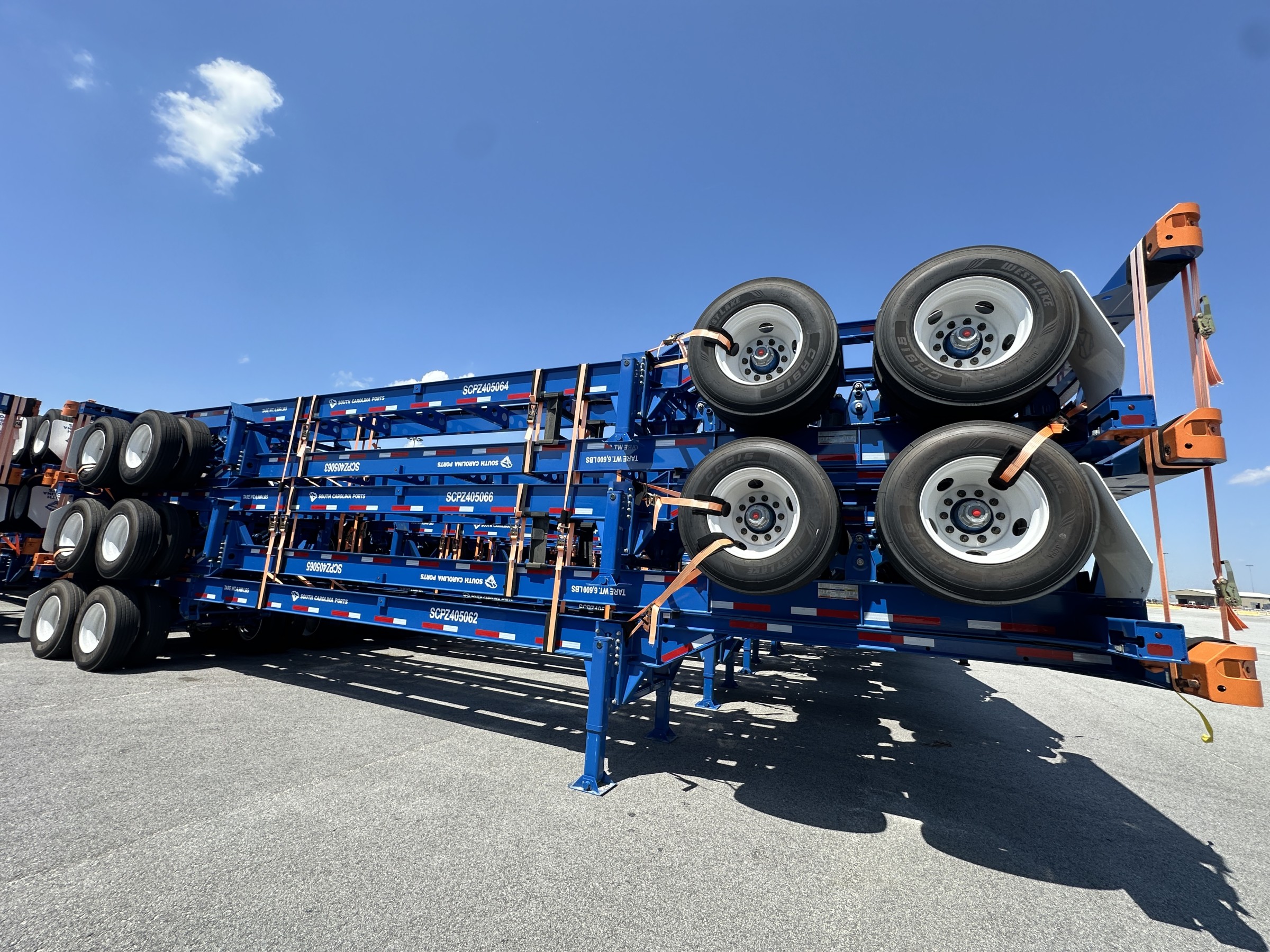

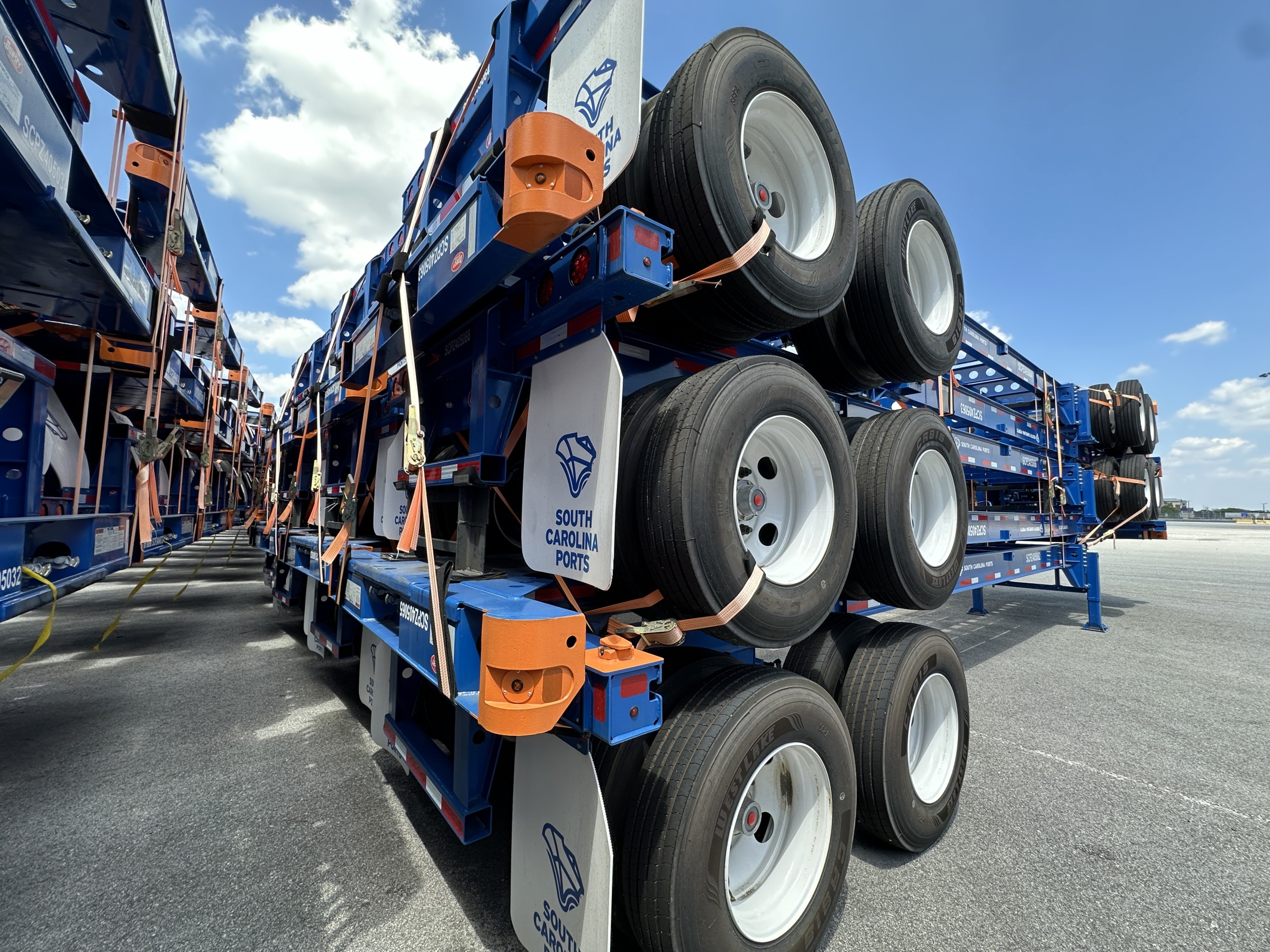

(2300) Thaco Special Vehicles 40-ft Trailer Chassis

Manufacturer: Thaco Special Vehicles
Model: 40-ft Trailer Chassis
Year: 2022

Year: 2022

Manufacturer: Thaco Special Vehicles

Overall Length: 40’-8” (Excluding dock bumpers)

Overall Width: 96”

Overall Height: 58”

Fifth Wheel Height: 48±1”

Rear Deck Height: 48±1”

Kingpin Location: 30” (From the rear face of the front bolster)

Landing Gear Location: 100” (From the kingpin center)

Axle Spread: 49”

Tare Weight: 6,600 lbs ±2%

Payload: 67,200 lbs (30,480kgs)

Main Beam: W12@19lb/ft hot-rolled H-beam, ASTM A572 Grade 50

Cross Member: 3/16'' thick x 3'' wide x 9'' deep channel with profiled bar type diagonal brace

GN Member: 5” deep x 4” wide fabricated H-beam, 1/2” thick flanges and 1/4” thick web

Front Bolster: 8” wide x 10” high x 1/4” thick open section, with 3-1/2” chamfer in full length for gathering container in operation. 7-way receptacle and glad hands are in the center of front bolster. Casted corner caps (TOCA 905-940-000RS/CS).

Rear Bolster: 8” wide x 3/8” thick top plate with 7” wide x 6-5/8” deep x 1/4” thick “U” type bottom channel.

Rear Bumper: 4” x 4” square tube step with taper “H” section vertical member. Bar is welded to uprights and main beam.

Front Locking Pin: TOCA 905-910-000-LH/RH

Rear Twist Lock: TOCA 905-123-000-90-LH/RH

Landing Gear: JOST A440 Magnum

Suspension: AXN mechanical tandem suspension, overslung configuration with high-arch 3-leaf spring (354-00)

Axel: AXN 5” round axles with 22,500lb capacity; 71.5” track, Q+ 16.5”X7” 4707Q brake. (BLUE RAL5010 color). 28 spline, HALDEX 5.5” automatic slack adjusters. 28 spline, HALDEX 5.5” automatic slack adjusters. Axle Installation orientation: 270 degrees FRONT, chambers UP (1 abs ready front, 1 non abs rear per unit).

Wheel end: AXN Hub & Drum Assembly P/N H30-0647BFNTZ/H30-0647BFNZ,STEMCO 358-4009 Integrated Sentinel Grease Hub Cap, STEMCO seals and bearings. Spindle nut: STEMCO Zip-Torq P/N 400-4743.

Lubricant: CITGO SynDurance 460 NLGI 00 grease lubricant

Tires: WESTLAKE 11R22.5-14PR tubeless type with “SCPA” branded on tires

Brake System: SEALCO 110800 spring brake priority valve system and WABCO 2S/1M ABS system PHILLIPS glad hand 12-0061 and 12-0081, 3/8” blue air tube for control and 3/8” red for supply. HALDEX Goldseal T30/30, 2.5” stroke brake chamber. FUWA air tanks.

Electrical: PHILLIPS mold seal wiring harness, Reserved PSI and GPS connector. (10-year warranty). OPTRONICS LED lights (amp connections for S/T/T lights and .180 bullets for others). The theft proof design used for 4'' LED lighting.

Designed: To transport 40’ ISO containers

Certifications: DOT, AAR, ANSI, TOFC, FMVSS, SAE and TTMA

Contact for Pricing
