Recycled Fiber Spinning Plant

Manufacturer: RIETER
Year: 2021

PROPOSAL 6401-CP



    BLOWROOM:

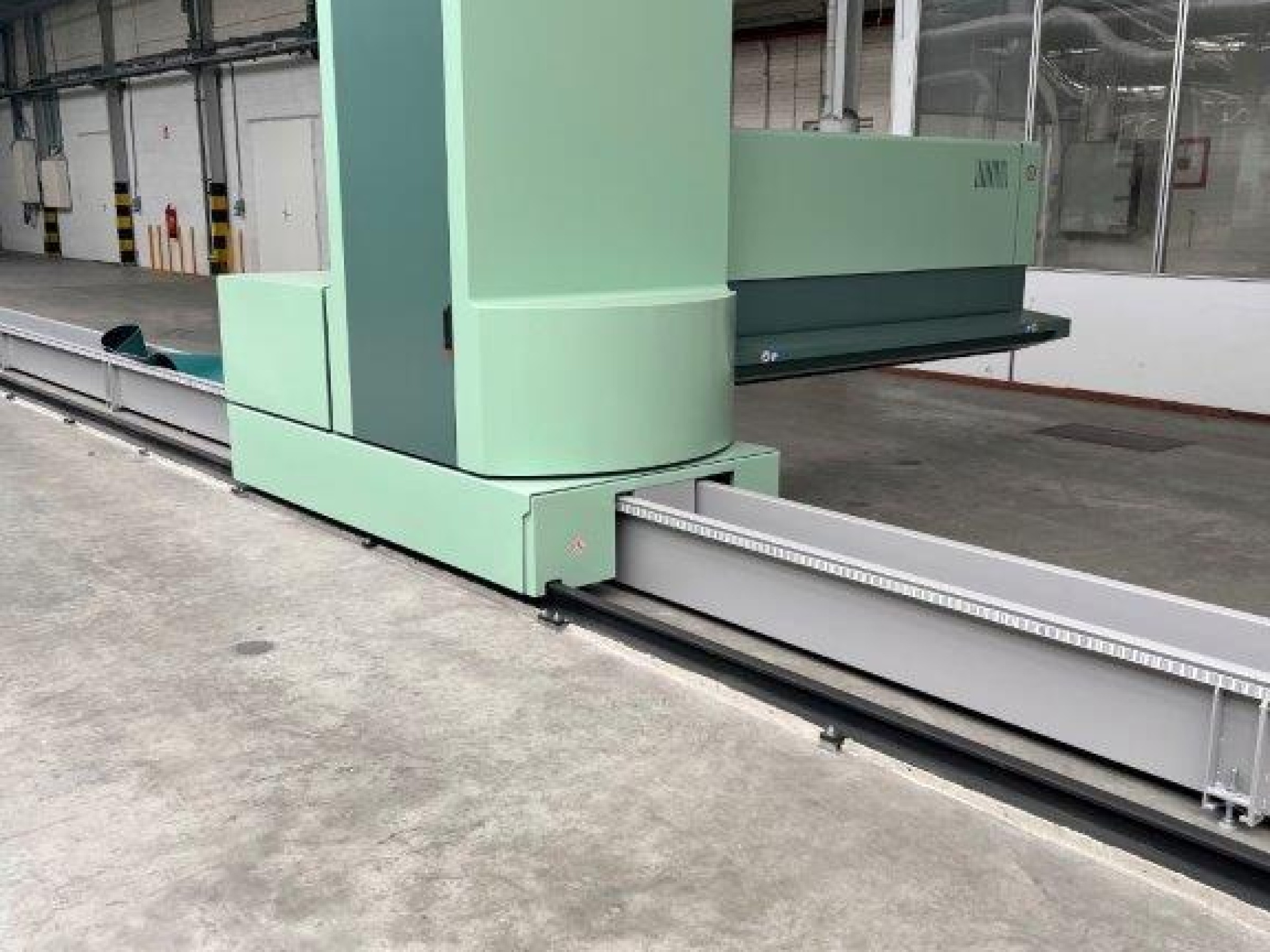

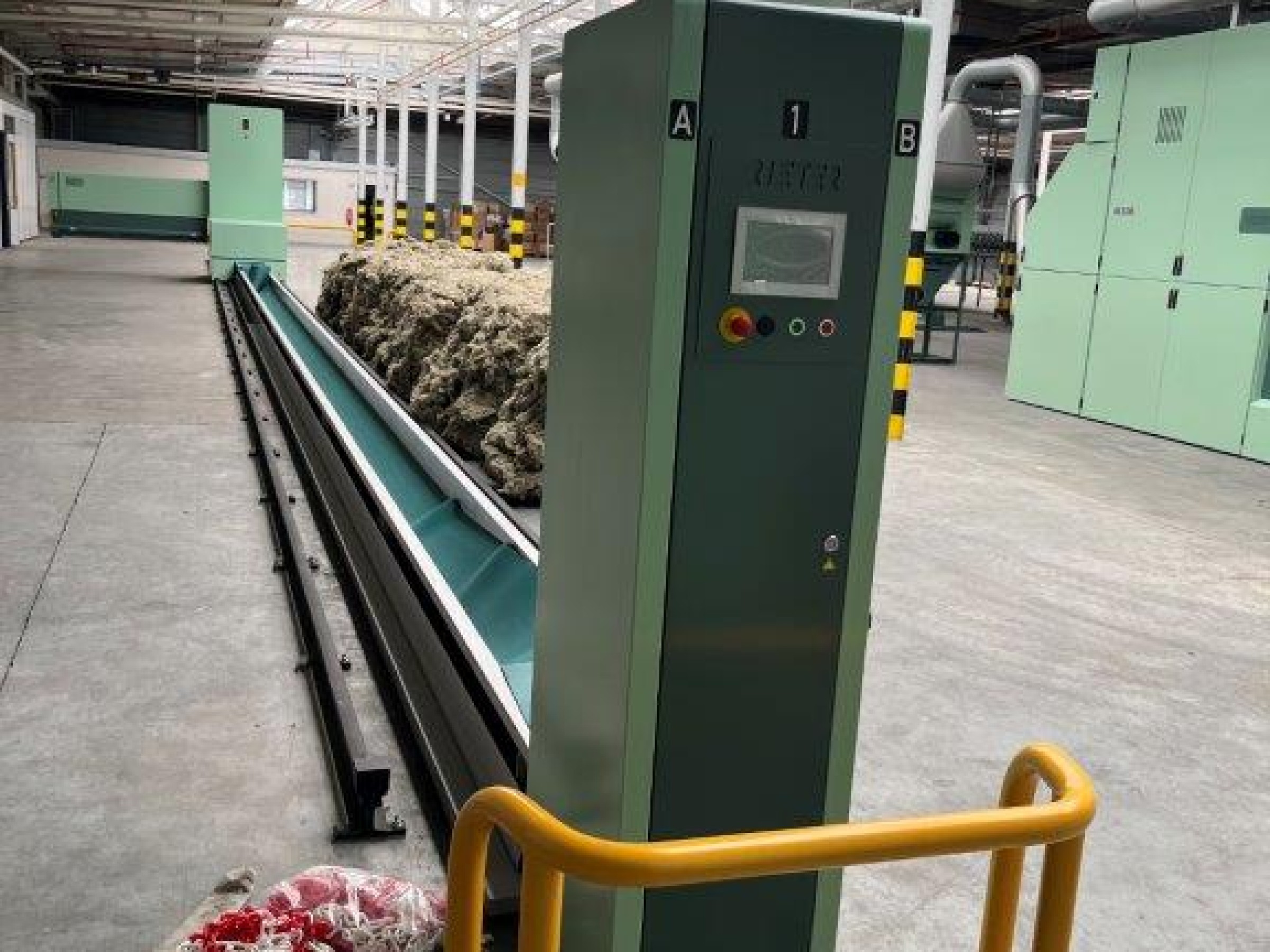

    1   RIETER BALE OPENER

           Model Unifloc

            Type: A12

          Year: 2021

          Arm Length 2300 mm

          Bale Layout 27,5 m

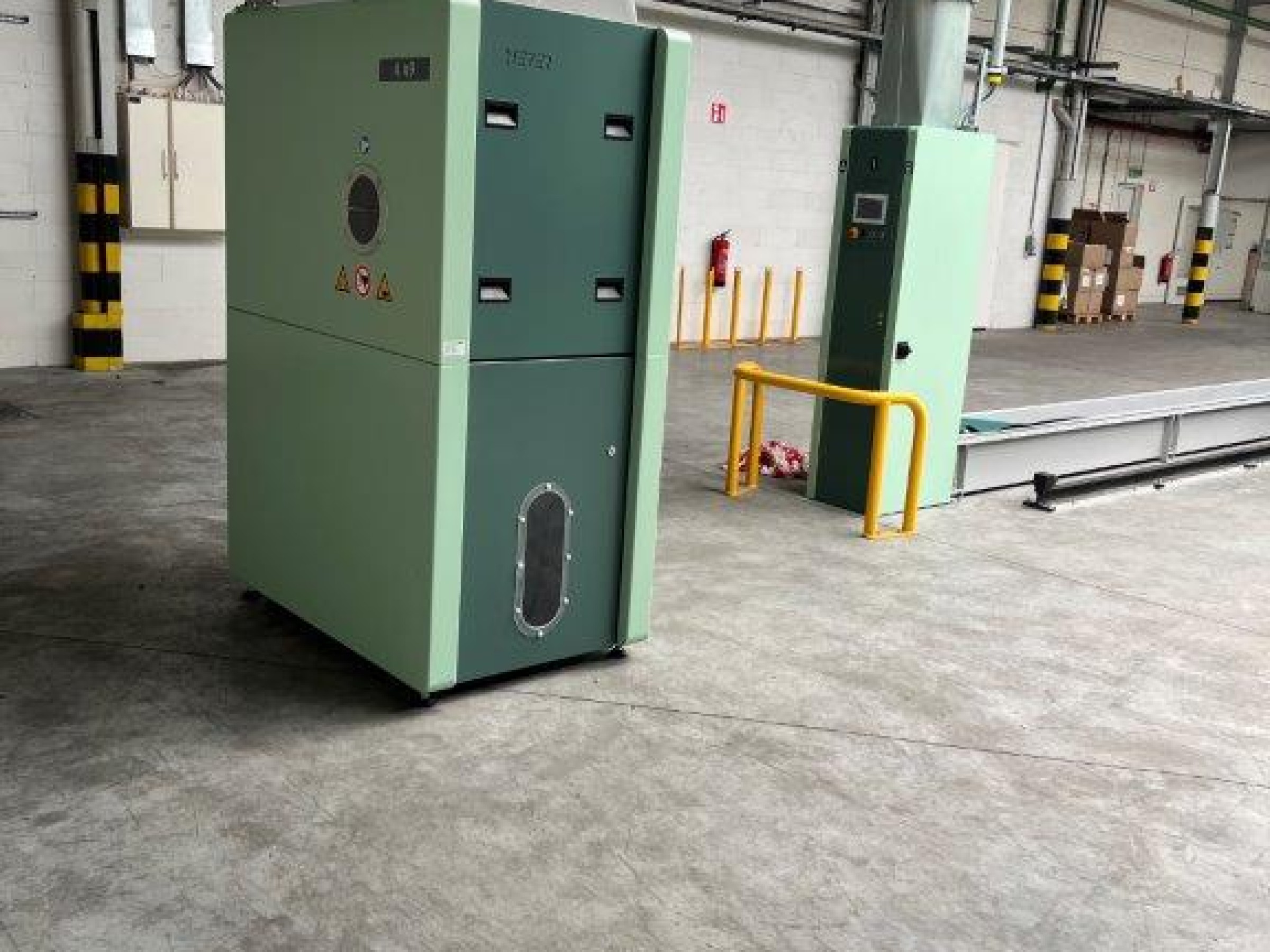

    1   RIETER CONDENSER

            Type: A 22

          Year:  2021

          with Sieve Drum

    1   RIETER MIXER

          Model: Unimix

          Type: B 72 S

          Year: 2021

          Saw Tooth Opening Roller R10/10” cotton/linen

          for man-made fibres and blends

    1   RIETER CONDENSER

          Type A 21

          Year:  2021

          with Sieve Drum

    CARDING:

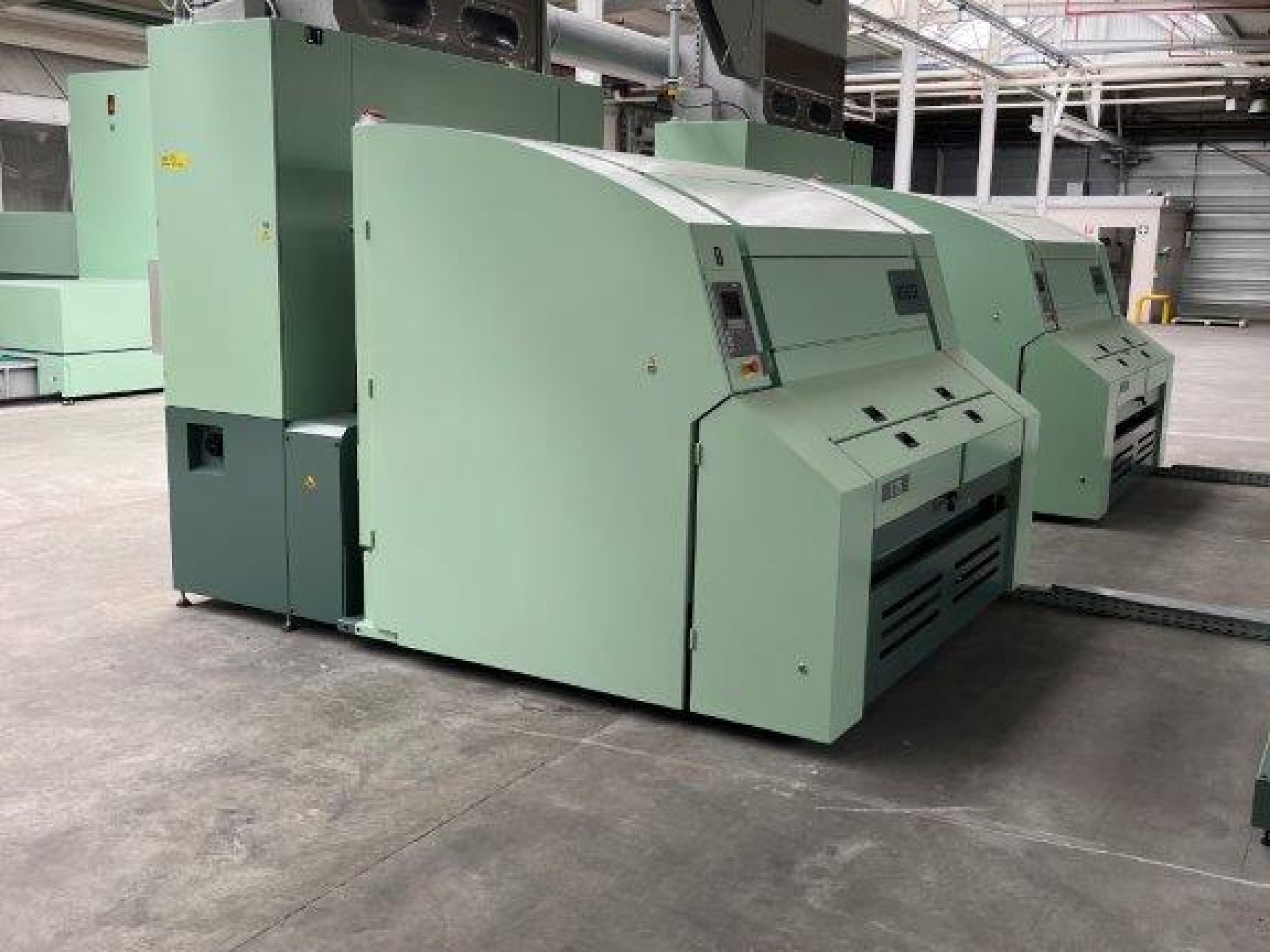

    2   RIETER CARDS

          Type: C77

          Year: 2021

          with Automatic Single Can Changer

          Can Size 1200 mm x 1200 mm (48” x 48”)

          Single Licker-in

          Capacity 120 kg/h each

          HIGH TECH Card Clothing

          Card Clothing for Regenerate

          IGS automatic System integrated

          Chute Feed with Metal Detector

          Pneumatic Fibre Conveyance System

    1   RIETER CENTRAL CONTROL SYSTEM

          Type: Unicontrol

          Year: 2021

    DRAWING:

    1   RIETER DRAW FRAMES

            Type RSB D50

            Year: 2021

          Power Creel for 6 Cans

          Can Size 1070 mm x 450 mm (40” x 18”)

          4 over 3 Drafting System

          Delivery Roller dia. 40 mm

          Ratch centrally adjustable up to 60 mm fiber length

          for cotton and man-made fibers

          Cans on trolley

          CLEANtube System

    OPEN END:

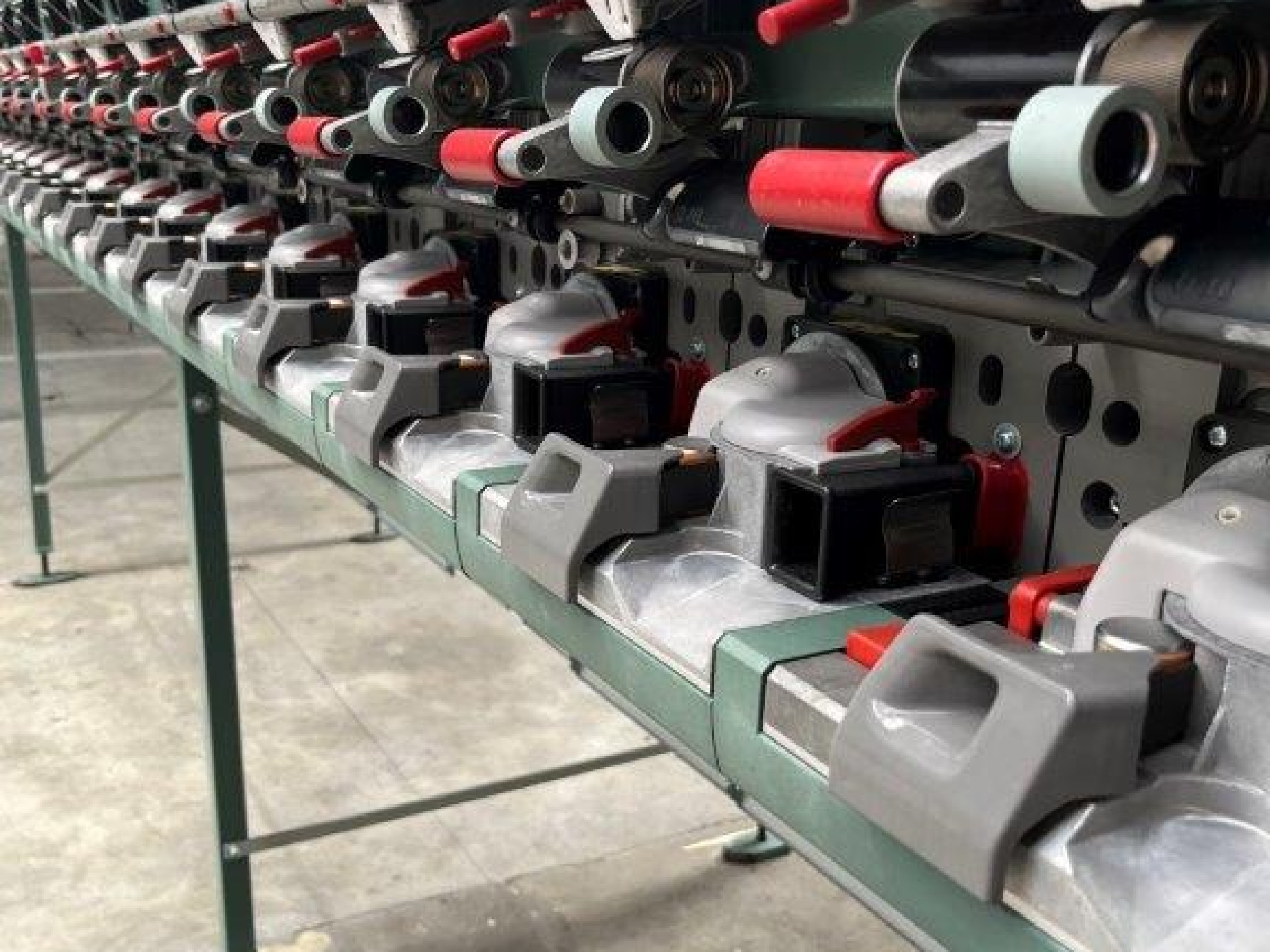

    1   RIETER OPEN END SPINNING FRAME

          Type: R37

          Year: 2021

          500 Rotors

          Rotor Día. 33 mm

          Rotor Type S 533/U-D

          Opening Rollers Type S81-DN-64 v2

          Draw-off nozzles Type S-R7 RS

          with ASI System

          with AMISpin-Pro

          for conical bobbins 1 deg 51’

          Rotor Drive 2 x 22 kW

          Q10 Yarn Cleaner

          Speed up to 95.000 rpm

          4 Piecers

Contact for Pricing
